Yamaha AM602

Mixer

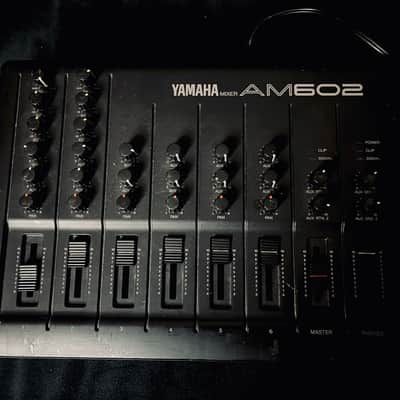

Yamaha mixer AM602

1989 (Apr.)
Initially sold for ¥27,000

The Yamaha AM602 is a very simple and straightforward mixer that while being cheap still has a decent amount of features compared to its parent KM602. It has 6 monaural line inputs, two of which can be switched to accept a low-level input such as a microphone, and two aux sends with two separate stereo returns.

Using the SUB IN and OUT jacks, another AM602 can be used as sub-mixer (just one more), creating a cascade and increasing the number of available channels to 12. An 8 channel version, the AM802 mixer, was also available.


Technical
specifications

Connection terminals and interfaces

CH IN (x6)
AUX send 1, AUX send 2
AUX return 1 (L, R), AUX return 2 (L, R)
SUB IN (L, R), SUB OUT (L, R)
ST OUT L, ST OUT R, Phones

Dimensions and weight

318w x 86h x 228d (mm)
1.8Kg
