1986 (July)
Initially sold for ¥110,000
Despite the name, some features are closer to the DX21: stereo output with digital chorus effect for example.
Otherwise, it's exactly like a DX27 with two speakers (hence the S in the name) on the sides.

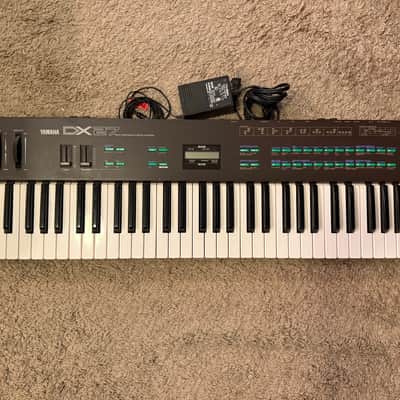

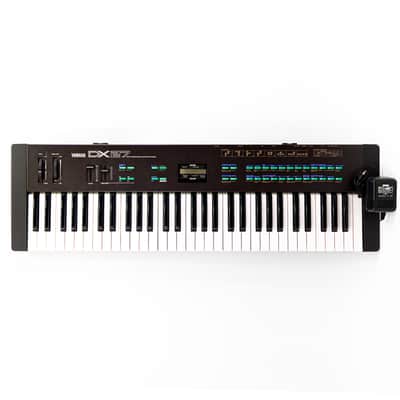

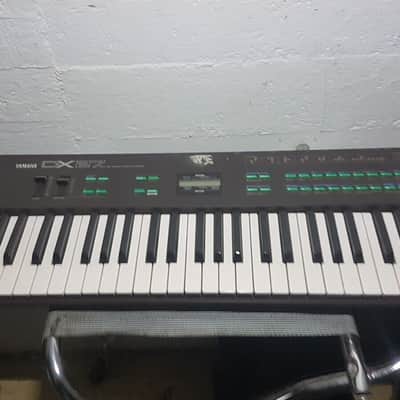

Yamaha DX27s
Digital programmable algorithm synthesizer
Technical
specifications
Keyboard |
|---|
| 61 keys |
Sound source |
|---|
| FM tone generator (4 operators, 8 algorithms) |
Simultaneous note output |
|---|
| Polyphonic: 8 notes |
| Monophonic: 1 note |
Memory capacity |
|---|
| 24 voice internal RAM (alterable) |
| 192 voice ROM (reading only) |
| 96 voice number bank (alterable) |
Connection terminals and interfaces |
|---|
| Output I, Output II (mono phone jack) |
| Output Phones (mono phone jack) |
| Control jack: foot switch |
| Cassette port |
| Breath control |
| MIDI IN, MIDI OUT, MIDI THRU |
Dimensions and weight |
|---|
| 1091w x 82h x 270d (mm) / 42.9” x 3.2” x 10.6” |
| 10.5Kg / 23.1lbs |
