Yamaha SPX90

Digital multi-effect processor

Yamaha SPX90 rack effects
Buy one (14 on sale)

1986 (Mar.)
Initially sold for ¥98,000

A good reverb unit, with delay, chorus, flanging, short sampling and pitch changing. It was the third affordable digital effect unit released by Yamaha after the D1500 digital delay and the R1000 digital reverberator.

It featured a MIDI interface for program changes so that effects could be swapped or controlled automatically. The onboard reverb and delays were praised for being good quality for the price, although the EQ wasn't very great. One effect at a time, with the ability to also sample a 500ms long audio ("freeze") to be edited and played back.

It quickly became a classic for small studio owners or home players and was still very well regarded in the early 1990s.

A revised SPX90 II was released a exactly a year later with few minor changes. Can be controlled with the RC7 remote unit.

SPX90 on Sound On Sound, Dec 1991
SPX90 on Sound On Sound, Dec 1991

Technical
specifications

Sound source

31.25 kHz 16-bit linear A/D converter (mono)
31.25 kHz 16-bit linear D/A converter

Memory capacity

30 ROM presets
60 user patches

Connection terminals and interfaces

Input jack
Output L, Output R
Remote port
Memory trigger jack, Bypass jack
MIDI IN, MIDI THRU

Dimensions and weight

480w x 45.2h x 285d (mm)
3.2kg

Buy a used
Yamaha SPX90

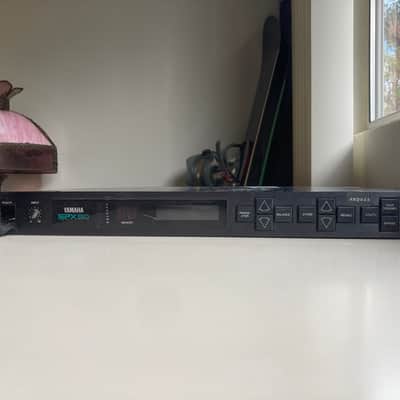

Used Yamaha SPX90

Buy used Used Yamaha SPX90
$217.99
Open Reverb

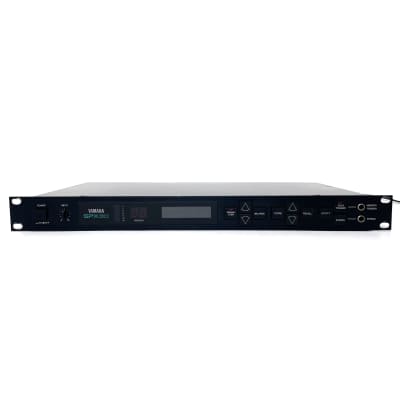

Yamaha SPX90 Digital Sound Processor + manual
