Yamaha YS100

Digital synthesizer

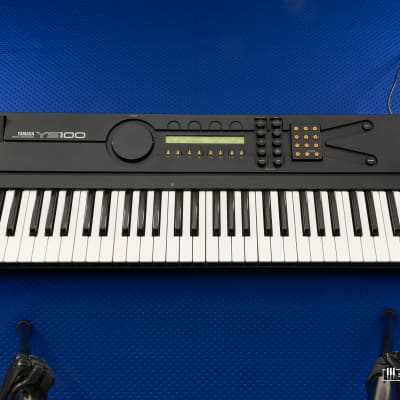

Yamaha EOS YS100 FM digital synthesizer

1988 (July)
Initially sold for ¥102,000

The YS100 is exactly the same synthesizer as the Yamaha YS200, but lacks the internal sequencer and the keyboard doesn't have aftertouch.

YS family, sold in Japan under the EOS brand
YS family, sold in Japan under the EOS brand

Technical
specifications

Keyboard

61 velocity-sensitive keys

Sound source

FM tone generator (4 operators, 8 waves, 8 algorithms)

Simultaneous note output

Polyphonic: 8 notes
Monophonic: 1 note

Memory capacity

Internal program RAM: 100 voice programs
Internal program ROM: 100 voice programs

Connection terminals and interfaces

Output L/MONO, Output R
Output Phones (phone jack)
Sustain, Foot volume
Breath control
MIDI IN, MIDI OUT, MIDI THRU

Dimensions and weight

990w x 320h x 105d (mm) / 39” x 12 5/8” x 4 1/8”
6.9Kg / 15.3lbs
